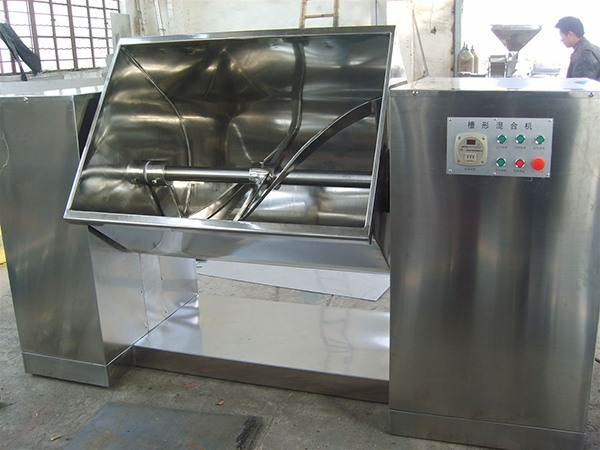

Trough Medical Mixer

Trough medical mixer is suitable for pharmaceutical, chemical, food and other industries, primarily dealing with evenly mixed powder or pasty materials. This device works by adoption of mechanical drive, and this method can improve the quality of each beach of mixture with high degree of uniformity.

Firstly, this trough medical mixer rotates S type stirring paddle and turn over raw materials back and forth. After mixing the material well, our product starts to adopt electric control to set mixing time. When the time comes, it can stop automatically and discharge our material by electricity.



Technical Parameter
Model CH-30 CH-50 CH-100 CH-150 CH-200 CH-300 CH-400 CH-500 CH-600
Type of paddle S Type of paddle S Type of paddle S Type of paddle S Type of paddle S Type of paddle S Type of paddle S Type of paddle S Type of paddle S Type of paddle
Working volume 20 30 60 90 140 180 250 300 280
Agitation speed of stirring paddle, rpm 24 24 24 24 24 24 24 24 24
Turning angle, r <105 <105 <105 <105 <105 <105 <105 <105 <105
Agitation motor, KW 0.75 1.5 2.2 3 4 5.5 7.5 11 15
Discharging motor, KW 0.12 0.55 0.55 0.75 0.75 1.1 1.5 1.5
Overall dimensions, L×W×H, mm 1065×380 ×520 1265×430 ×720 1580×500 ×830 1685×600 ×1000 1850×600 ×1000 2160×70 0×1200 2280×700 ×1250 2450×700 ×1250 2500×900 ×1350
Weight, kg 150 200 300 650 720 750 780 820 850

Jiangnan Enterprise is a professional trough medical mixer manufacturer in China. The wide range of products we offer includes automatic open capsule and powder taking machine, drug inspection machine, super mixing granulator, and more.
