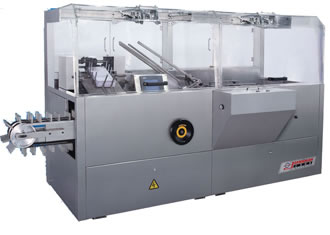

Descriptions of Horizontal Cartoner:
1. This cartoning machine is ideally suited for packing blister packed capsules, tablets, blister plates, etc. into cases.
2. This kind of packaging machinery can automatically perform such functions as medicine conveying, instruction manual transporting, carton forming and feeding, batch number printing, carton tongues sealing etc.
3. It also can be connected with the blister packing machine to form a pharmaceutical packaging line.

Features of Horizontal Cartoner:
1. PLC control, frequency conversion speed regulation
2. Electric parts adopt well-known brands
3. Human- machine interface operation system
4. Automatically display malfunction, cartooning speed, and the number of finished products
5. Automatically detect the packing of medicine plate and instruction manual
6. Stable performance, easy operation

Technical Parameters of Horizontal Cartoner:

Item		Model:WZH-100
Encasing speed		30-100 Boxs/min
Power ( Kw)		370W 220V 50Hz
BOX	Quality requirement	250-350g/m2
	Dimension range(L*W*H)	(55-180)mm*(30-85)mm*(15-50)mm
Leaflet	Quality requirement	50-65g/m2
	Unfolded leaflet specification	(80-300)mm*(70-210)mm
	Folded leaflet specification(1-4)	(70-210)mm*(20-40)mm
Compressed air	Working pressure	0.5-0.7mpa
	Air consumption	120-160L/min
Power supply		220V 50HZ
Motor power		0.75w
Machine dimension(L*W*H)		2100*880*1800mm
Machine weight		1200kg
